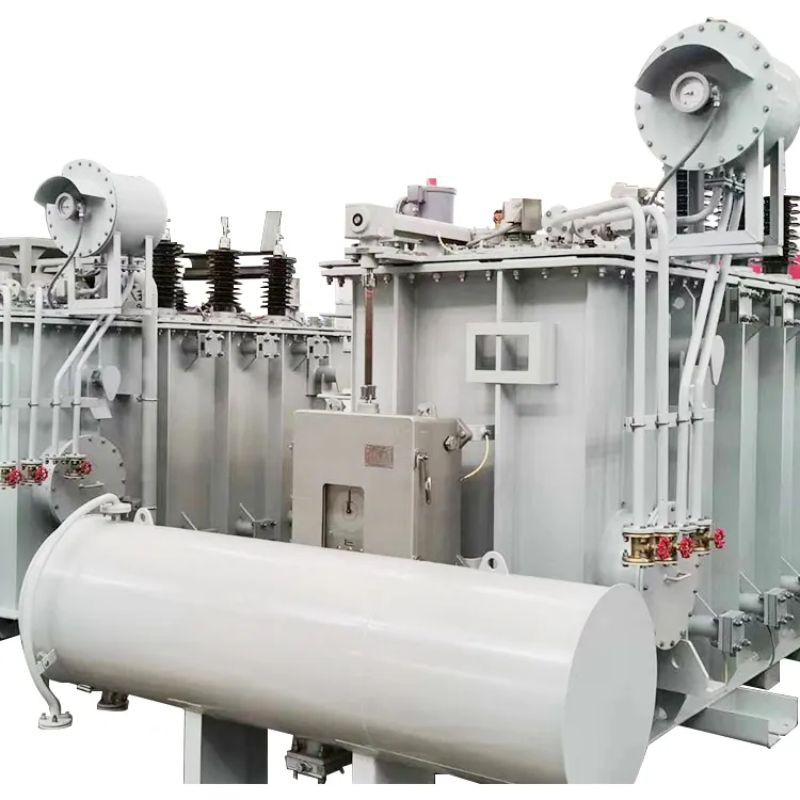

Professional 66 KV Power Transformer Manufacturer
The 66KV power transformer produced by our company is self-developed based on the advanced technology at home and abroad, and tailored to the characteristics of China's urban and rural power grids. Its product performance index is superior to GB/T6451 Technical Parameters and Requirements for Three phase Oil type Power Transformers, and fully complies with JB/T3837 Preparation Method for Transformer Product Models, GB/T1094 Manufacturing Standard for Power Transformers, IEC standard recommended by International Electrotechnical Commission, and GB20052-2020 Minimum Energy Efficiency Values and Energy Efficiency Grades for Power Transformers.
Technical Specification
Voltage regulation method: on-load voltage regulation, no-load voltage regulation
Rated capacity: (630-63000) KVA
Frequency: 50Hz
Number of phases: 3-phase
Vector group: according to national standards or user requirements
Short circuit impedance: according to national standards or user requirements
Usage environment: according to national standards or user requirements
Cooling method: oil immersed self cooling, air cooling
Insulation level: according to national standards

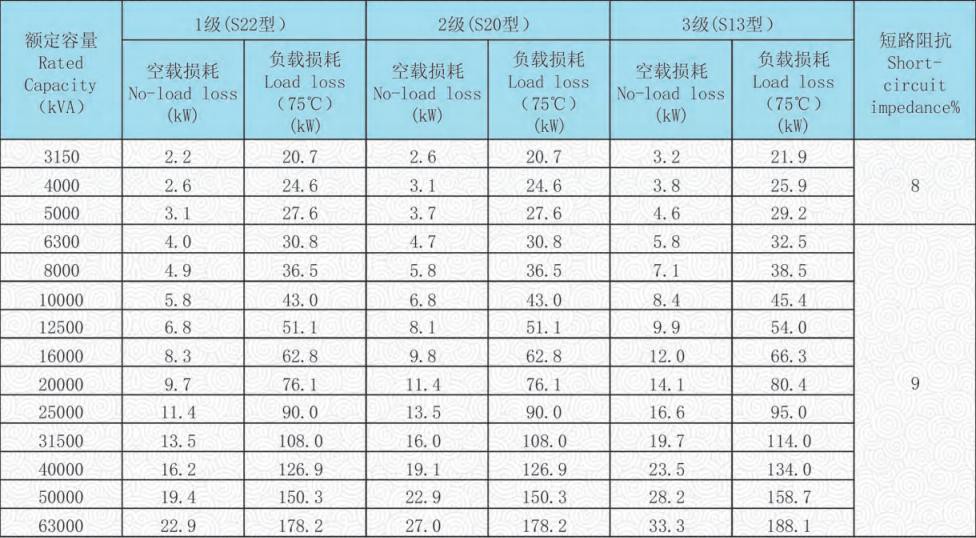

Ryan 66 KV Power Transformer Technical Data
66kV three-phase two-winding no-excitation power transformer
66kV three-phase two-winding on-load tap changing power transformer<
If the above 66KV power transformer technical data cannot meet your needs, please send your requirements to the email address: ericwu@redq.cc
