Professional 22 KV Distribution Transformer Manufacturer

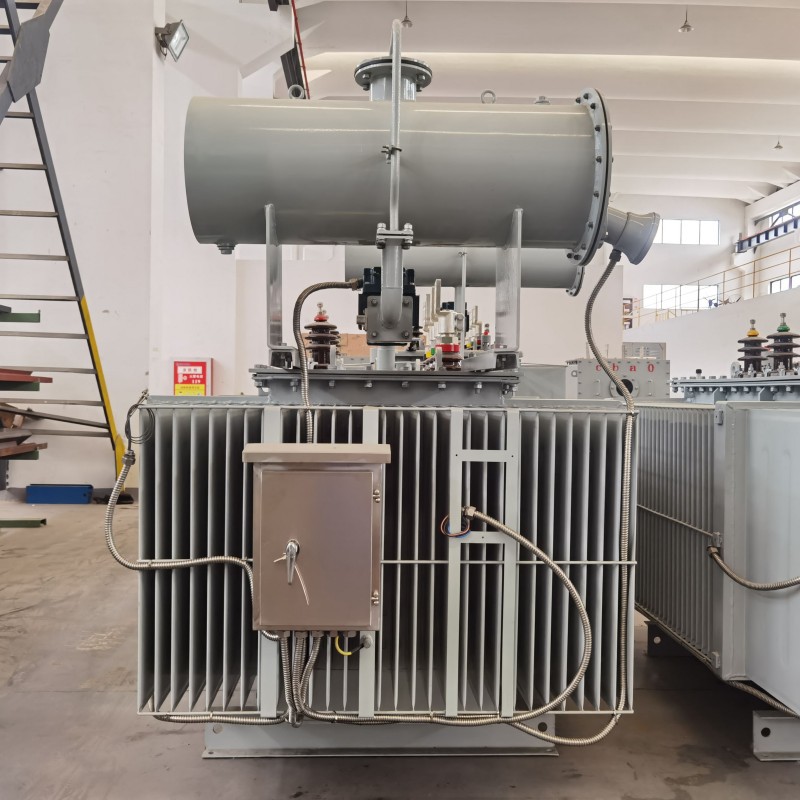

22KV Class Three Phase Oil immersed Distribution Transformer capacity from 100kVA to 3000kVA.

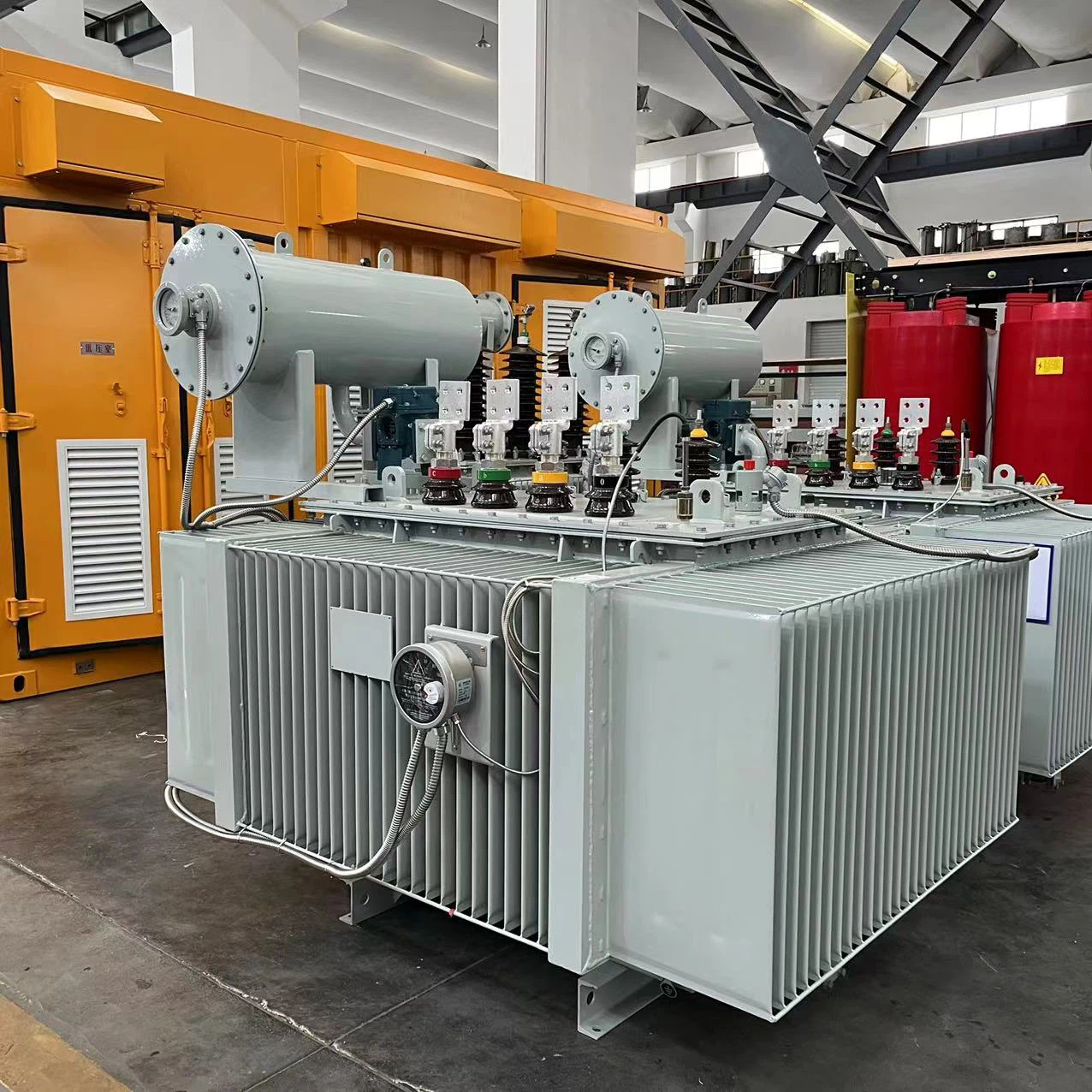

Compared with the 11kV class, the 22kV three phase oil-immersed distribution transformer has some advantages:
Higher voltage capacity
A 22kV distribution transformer can handle higher voltages than an 11kV distribution transformer, which means it can be used for larger electrical systems and networks.
Reduced losses
The higher operating voltage of a 22kV distribution transformer can lead to reduced power losses, which means more efficient distribution of power.
Lower current
A 22kV distribution transformer can deliver the same amount of power at a lower current than an 11kV distribution transformer, which can help reduce the size of conductors and other equipment in the distribution system.
Ryan 22 KV Distribution Transformer Technical Data
|
Rating(KVA) |
No Load Loss |
On Load Loss |
Connection |
Oil Weight(kg) |
Total Weight(kg) |
|
100 |
200 |
1500 |
Dyn11/Yyn0 |
115 |
600 |
|
200 |
335 |
2600 |
170 |
980 |
|
|
400 |
560 |
4300 |
240 |
1525 |
|
|
500 |
670 |
5100 |
270 |
1780 |
|
|
630 |
840 |
6200 |
320 |
2050 |
|
|
800 |
980 |
7500 |
490 |
2800 |
|
|
1000 |
1190 |
10300 |
570 |
3030 |
|
|
1250 |
1360 |
12000 |
650 |
3535 |
|
|
1600 |
1640 |
14500 |
750 |
4350 |
|
|
2000 |
1980 |
18500 |
950 |
5040 |
|
|
2500 |
2260 |
22500 |
1250 |
6060 |
|
|
3000 |
2730 |
27000 |
1800 |
7200 |
If the above 66KV power transformer technical data cannot meet your needs, please send your requirements to the email address: ericwu@redq.cc
