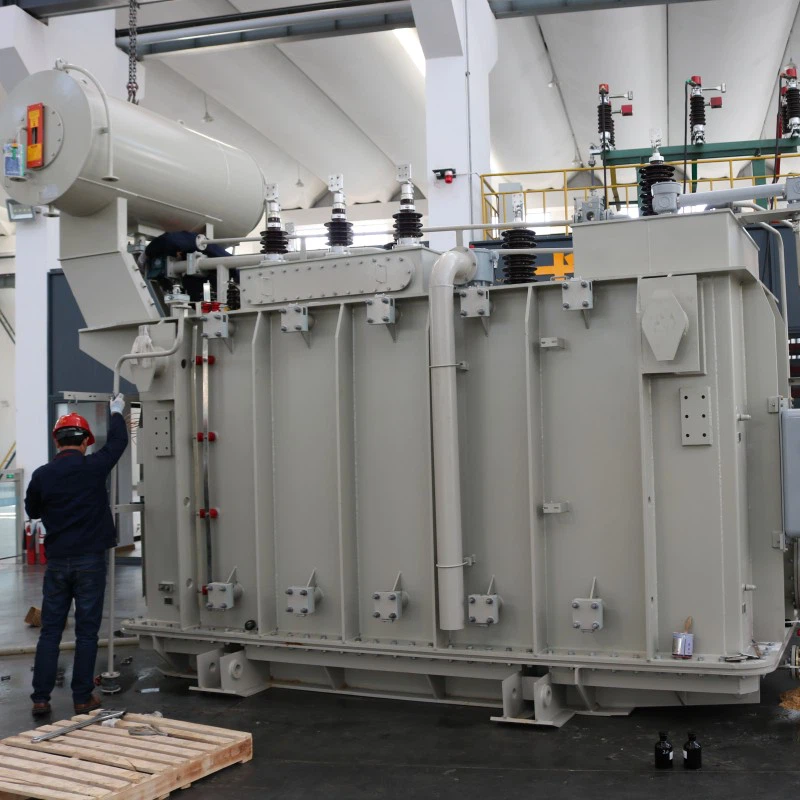

Professional 110 KV Power Transformer Manufacturer
Ryan Electric can produce High Voltage Oil Immersed Power Transformers up to 180 MVA,110 kV in own production facilities. Ryan Electric is fully equipped with senior engineers, facilities and tool to meet all kinds of customer’ requirements in design, production, tests, site assembly and maintenance. Each transformer is designed with a tailor-made approach, taking into account its application and environmental working conditions.

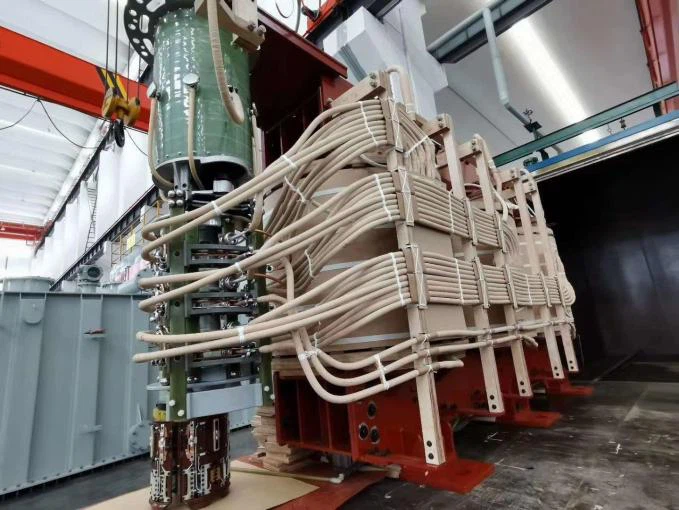

Manufacturing Process Features
1.Precise core ensures low losses and minimal no-load noise
High-grade, cold-rolled silicate steel are precision-cut with computer-controlled machines, then will be computerized assembled into cores, to ensure compliance with even the smallest tolerances. The mitered step-lap technique ensures superior flux distribution at the joints, resulting in exceptionally low losses and minimal no-load noise.
2.Voltage tapping system Available
Ryan 110KV power transformer allows you to safely adjust the voltage to grid conditions. It can either be changed in the de-energized state by means of a de-energized tap changer or adjusted in steps under load using on-load tap changers.
3.Leak-proof Tank with light weight
Ryan’s tank is structurally light and leak-proof, and must withstand mechanical stresses. First-class corrosion protection is therefore a basic requirement for long tank life.

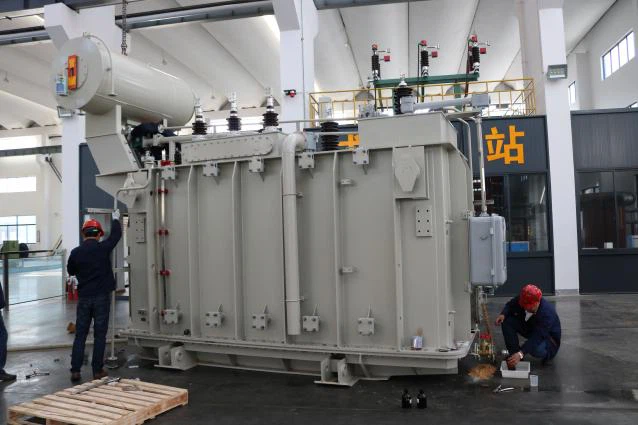

110KV Power Transformer Advantages
1) Partial discharged: The partial discharge is less than 80pC under 1.5 times of rated voltage;
2) Noise: Products of 63MVA and below is lower than 58 dB (AN);
3) Power loss: no-load loss is 30% lower than that of IEC standard;
4) Reliability: All in-service products have no damages or oil leakage occurred;
Ryan 110 KV Power Transformer Technical Data

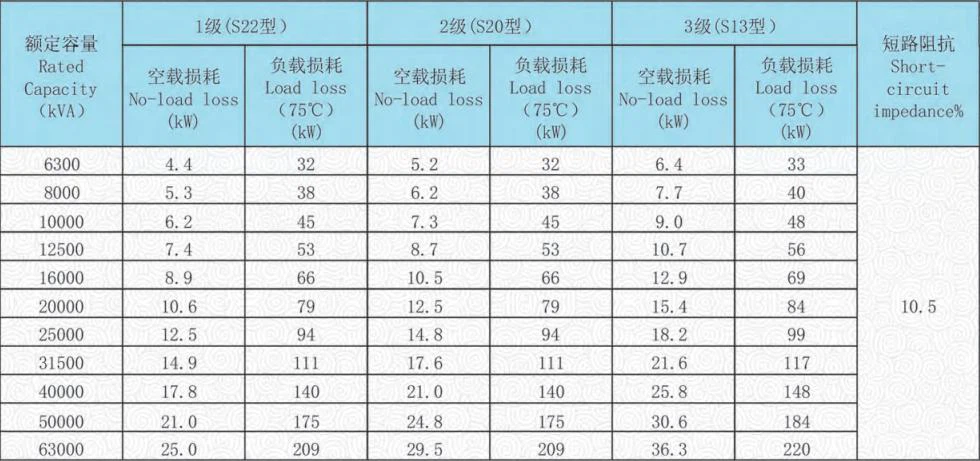

110kV three-phase two-winding on-load tap changing power transformer

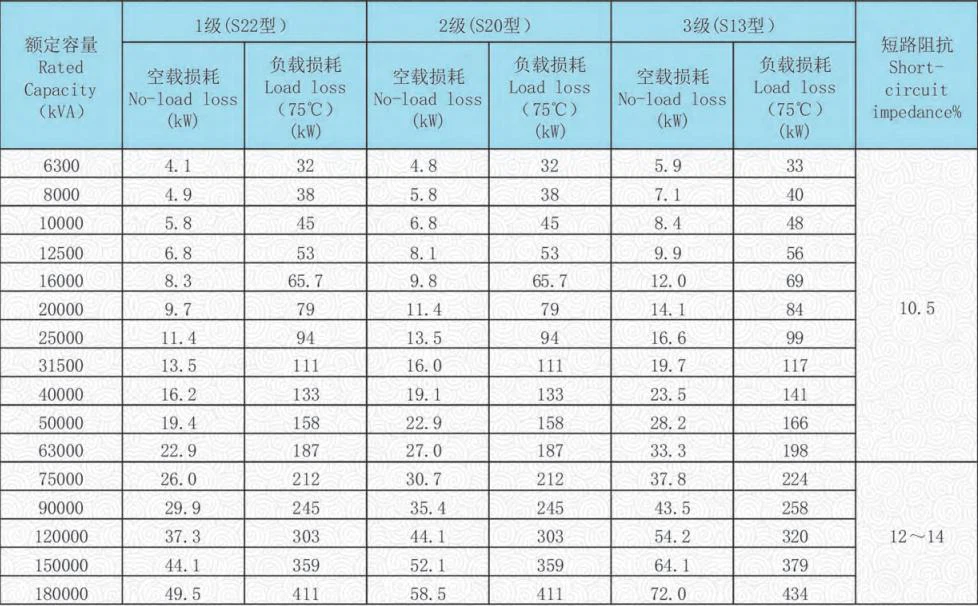

110kV three-phase two-winding on-excitation power transformer

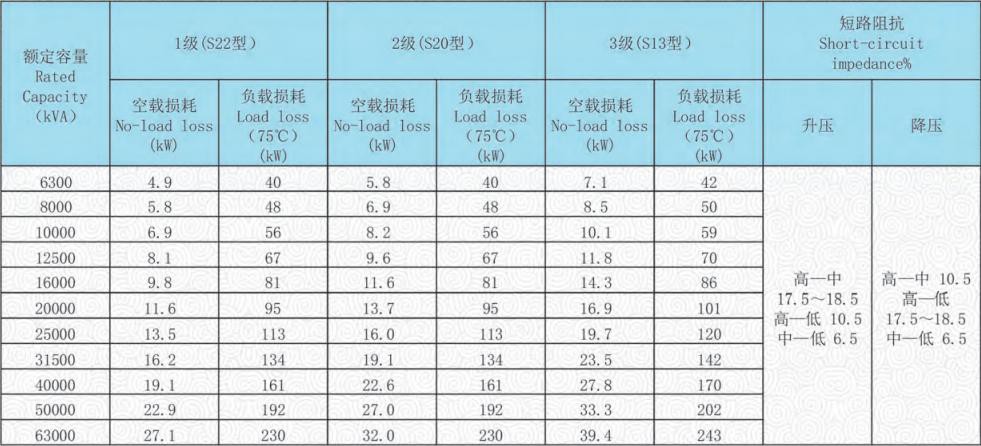

110kV three-phase three-winding on-load tap changing power transformer
110kV three-phase three-winding no-excitation power transformer
If the above 66KV power transformer technical data cannot meet your needs, please send your requirements to the email address: ericwu@redq.cc
FAQ
Q: What is meaning of 110 KV/ 11 KV substation?
A: 110 KV means this is the incoming supply of substation.
11kV means it is outgoing supply of substation i. e. Step down by using transformer.
Q: What is the safe distance for 110kv transformer substation?
A: According to the relevant power facility protection regulations, for a 110 KV substation transmission overhead line, its protection area is 10 meters away from the line, in other words, as long as the distance from the wire 10 meters away, the safety of electromagnetic radiation is guaranteed.
