For medium to high-voltage transformers, especially those rated between 35kV and 110kV, the On-Load Tap Changer (OLTC) plays a critical role in ensuring stable and efficient voltage regulation. This key component allows transformers to adjust output voltage under load conditions without service interruption, making it essential in utility grids, substations, and large industrial applications.
What Is an OLTC?
An On-Load Tap Changer (OLTC) is a mechanical switch integrated into a power transformer that adjusts the number of turns in the transformer's winding while the unit is energized and under load. This dynamic adjustment helps maintain a constant voltage level at the secondary side despite fluctuations in the supply or load.

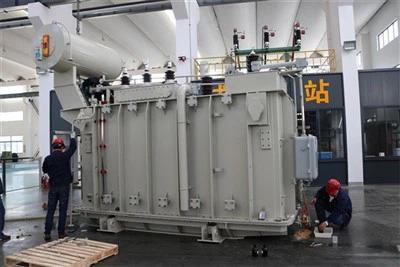

In a 35kV to 110kV oil-immersed transformer, OLTCs are usually installed on the high-voltage winding and offer ±5% to ±10% tap range, depending on system requirements.
Key Functions of OLTC in High-Voltage Transformers
- Voltage Regulation: OLTC ensures the output voltage remains within acceptable limits, which is crucial for grid stability.
- Load Balancing: Adjusts voltage to accommodate varying load profiles in real time.
- Power Quality Improvement: Prevents overvoltage or undervoltage scenarios that could damage sensitive equipment.
OLTC Maintenance and Inspection
Due to its moving parts and electrical contacts, the OLTC is one of the most maintenance-intensive parts of a transformer. Proper upkeep is essential for performance and longevity.
Routine Maintenance Tasks Include:
- Oil sampling and analysis: OLTC compartments use insulating oil to cool and insulate the contacts. Regular oil tests help detect carbonization or moisture.
- Contact wear inspection: Contacts should be inspected and replaced periodically to prevent arc damage.
- Resistance measurements: Detect anomalies in tap transitions or contact degradation.
- Control relay testing: Ensures proper switching and protection behavior.
For 110kV and above, automated OLTC monitoring systems are often used to record switching operations, temperature, and oil condition, allowing predictive maintenance and reducing unplanned outages.
Conclusion
An On-Load Tap Changer (OLTC) is vital for maintaining voltage stability in 35kV to 110kV transformers. While it offers critical functionality for modern electrical grids, it also requires regular inspection and preventive maintenance to ensure safe, long-term operation.
