VPI Transformer (Vacuum Pressure Impregnation Transformer) and Cast Resin Transformer are two different types of transformers used in electrical power systems. They differ in terms of construction, insulation material, and application.
1. Construction:
-

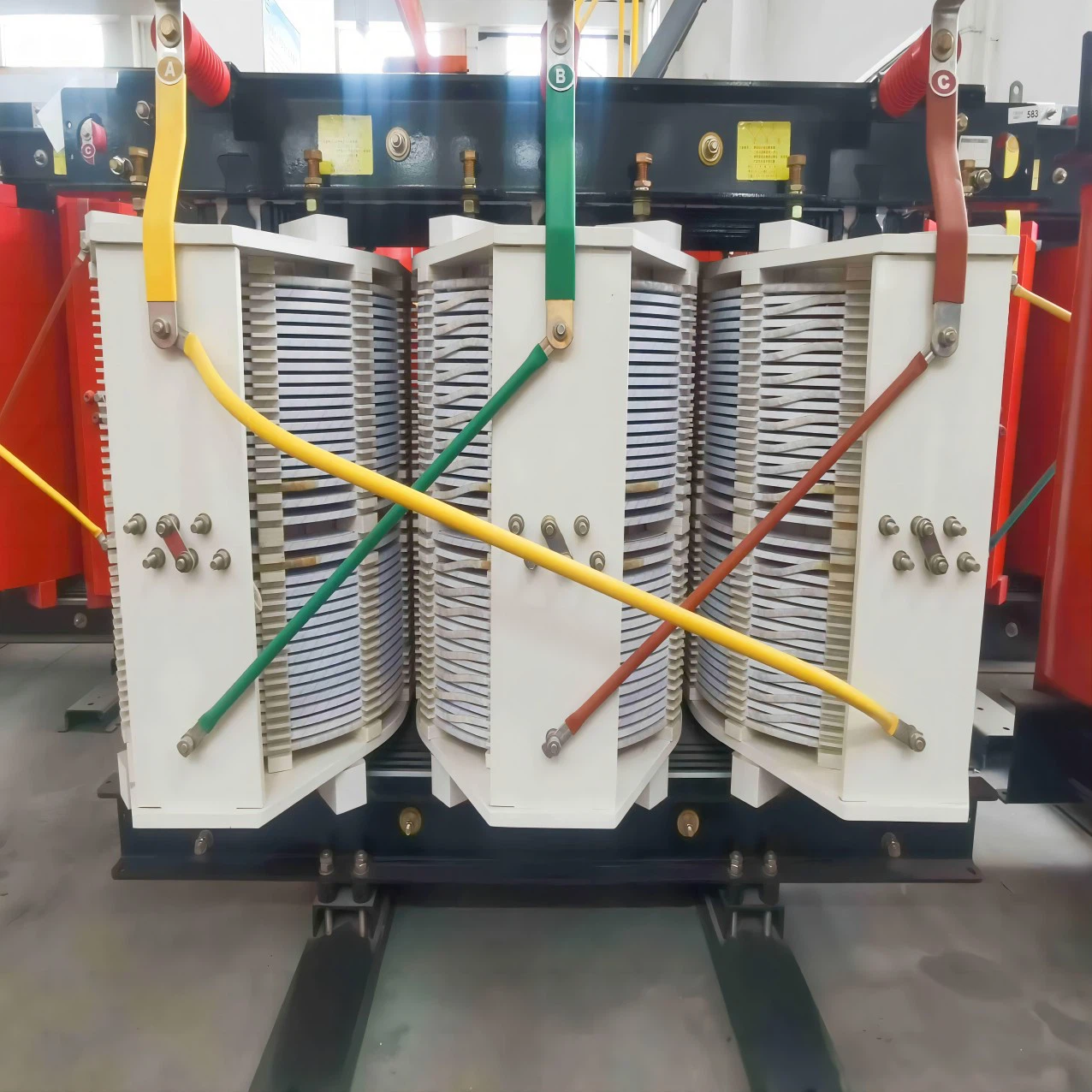

VPI Transformer: VPI transformers have a traditional construction with a magnetic core made of laminations and windings (copper or aluminum) insulated with an epoxy resin. The windings are typically immersed in a vacuum pressure impregnation tank for impregnation with epoxy resin, which enhances the insulation and protects them from moisture and contaminants.
-

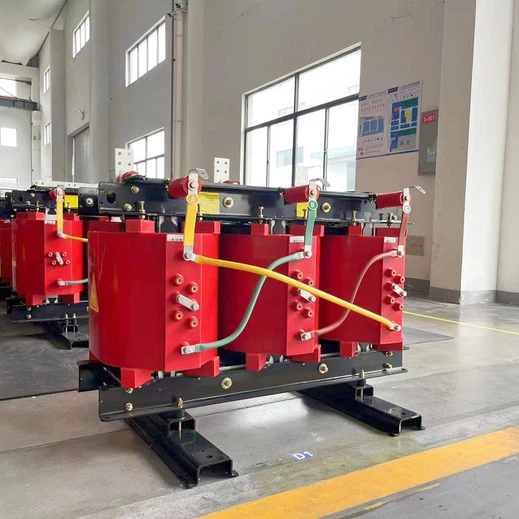

Cast Resin Transformer: Cast resin transformers, also known as dry-type transformers, have a different construction. They consist of epoxy resin cast around the windings and core, forming a solid and compact unit. The windings are encapsulated in a cast resin block, eliminating the need for a liquid insulation medium.
2. Insulation Material:
- VPI Transformer: VPI transformers use epoxy resin as the primary insulation material. The windings are impregnated with epoxy resin under vacuum and pressure, which fills the gaps and voids within the windings, enhancing the insulation properties and mechanical strength.
- Cast Resin Transformer: Cast resin transformers use epoxy resin as both the insulation material and structural support. The windings are encapsulated in solid epoxy resin, which provides excellent insulation properties, high thermal conductivity, and mechanical protection.
3. Application:
-
VPI Transformer: VPI transformers are commonly used in oil-filled transformers, where the windings are impregnated with epoxy resin to improve the insulation and protect them from moisture and contaminants. They are widely used in medium to large power distribution systems, industrial applications, and utility substations.
-
Cast Resin Transformer: Cast resin transformers are predominantly used in indoor applications where fire safety is a concern, as they are self-extinguishing and do not use flammable liquid insulation. They are commonly found in commercial buildings, hospitals, data centers, and other locations where safety and environmental considerations are important.
