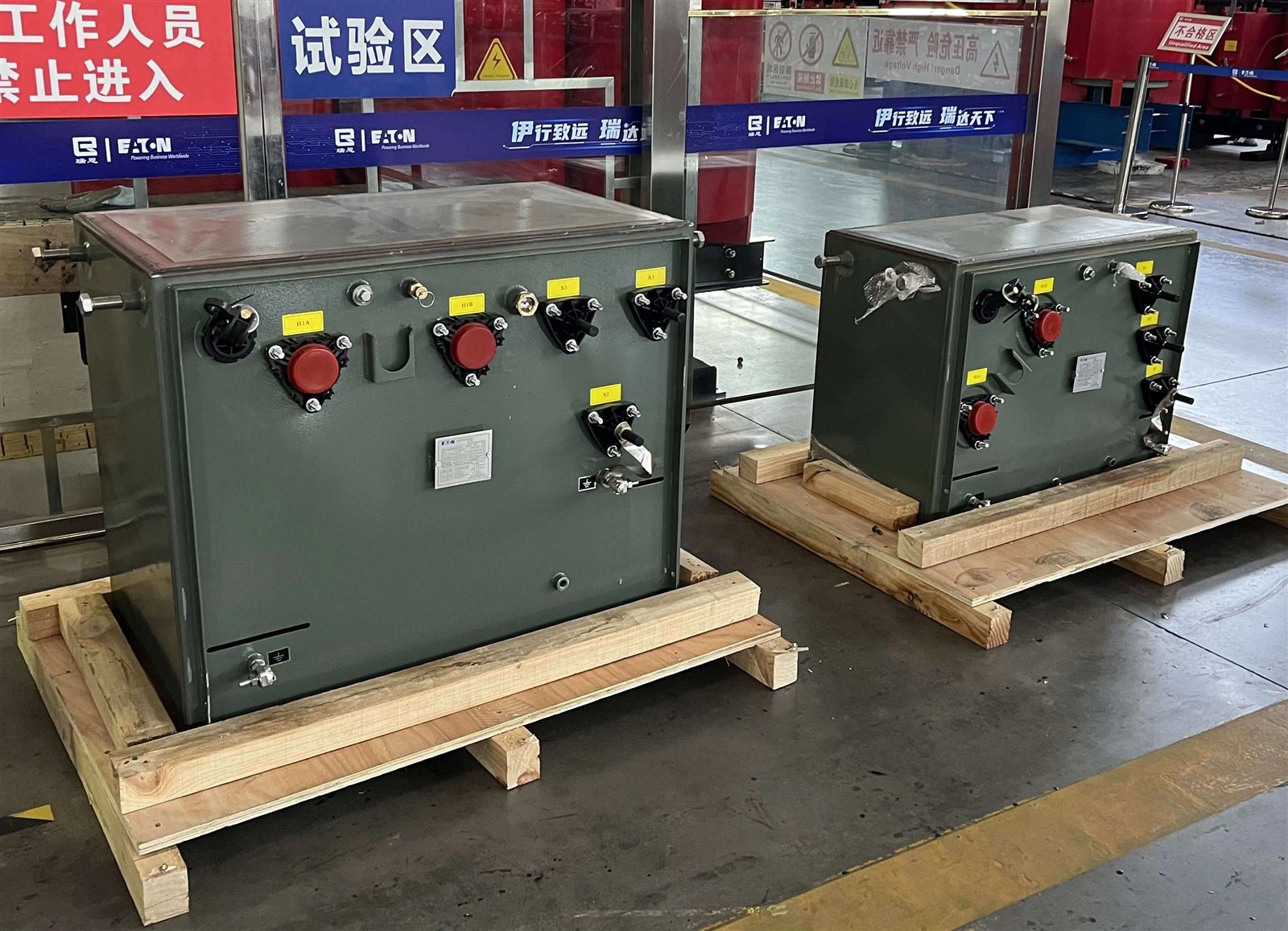

Single Phase Pad Mounted Transformer
A single-phase pad-mounted transformer is a type of electrical transformer that is designed to be installed on a concrete pad or platform at ground level. It is commonly used to supply electrical power to residential, commercial, and industrial areas where underground distribution systems are employed.
The term "single-phase" indicates that the transformer has a single primary winding and a single secondary winding. This means it is typically used to step down or reduce the voltage from the distribution level (typically medium voltage) to a lower voltage suitable for use in homes, buildings, or specific equipment.
The pad-mounted transformer is housed in a protective enclosure that is resistant to environmental elements such as rain, snow, and dust. It usually features a rugged construction and is designed to withstand outdoor conditions.
These transformers are equipped with various safety features, such as fuses, circuit breakers, and protective relays, to ensure reliable and safe operation. They can also include additional features like voltage regulators or surge arrestors, depending on the specific application and requirements.
Pad-mounted transformers are commonly found in urban and suburban areas where underground power distribution is preferred for aesthetic reasons or to minimize the risk of damage from weather conditions or accidents. They play a crucial role in delivering electricity to homes, businesses, and other facilities efficiently and reliably.
