A Guide to Choosing the Correct Pad Mounted Transformer for Your Project
Stop Guessing: Choosing a Pad Mounted Transformer That Actually Works
Walk onto any serious job site in Canada or the US, and you'll see them-those familiar green steel cabinets. But here's the thing most procurement managers miss: a pad-mounted transformer isn't a commodity you buy off a shelf like a box of nails. It's a custom-engineered asset that either keeps your facility running for 30 years or becomes a 5,000-pound liability. We've seen enough blown bushings and oil leaks to know that picking the wrong pad mounted transformer manufacturer is the fastest way to derail a multi-million dollar project.
Most people start by looking at kVA ratings. That's the easy part. The real headaches start when you dig into the standards. Are you dealing with a 65°C temperature rise or a 55/65°C? Is your footprint restricted? At our 120,000㎡ facility in Jiangsu, we've had to re-engineer designs mid-stream because a client realized too late that their local utility had a very specific requirement for the cabinet's locking mechanism. If you don't want to be that client, keep reading.
Dead Front vs. Live Front: The High-Voltage Truth
Let's cut through the jargon. When you compare a dead front vs live front pad mounted transformer, you're re
ally talking about exposure. In a dead front setup, the high-voltage connections are buried inside shielded elbow connectors. You can open the cabinet and there's no exposed 'hot' metal staring you in the face. It's safer, period. That's why 95% of our commercial projects-shopping centers, office parks, residential grids-use dead front. It's nearly impossible to accidentally touch an energized part.
Live front? That's the old-school approach. Exposed bushings, bare wire. You only see this in restricted-access industrial sites where only high-voltage experts are allowed past the fence. If your project has even a remote chance of being near the general public, don't even look at live front. It's not worth the liability risk, no matter how much 'savings' the vendor promises.
The Oil Factor: FR3 vs. Mineral Oil

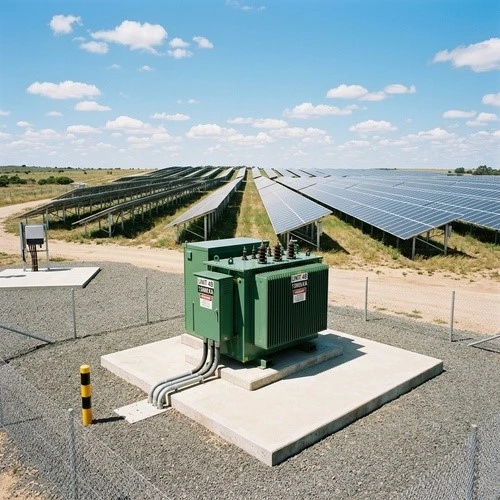

We get asked about this a lot. Mineral oil is the standard-it's cheap and it works. But if you're building near a river in Ontario or inside a sensitive ecological zone, you need FR3 (vegetable oil). It's biodegradable. If it leaks, you're looking at a cleanup job, not an environmental catastrophe. It also has a higher flash point, meaning it's harder to set on fire. It costs more, but in the solar farm projects we've supplied across Canada, FR3 is quickly becoming the non-negotiable standard.
Certifications: Don't Get Burned by Cheap Imitations
Listen, a UL listed pad mounted transformer price is higher for a reason. That label means the transformer has survived short-circuit tests that would melt a cheaper unit. We've seen 'un-certified' units from cut-rate suppliers fail on day one because their insulation couldn't handle the humidity in a coastal installation. At Ryan Electric, our partnership with Eaton has pushed our quality bar even higher. We build to DOE 2024 standards and IEEE Power & Energy Society guidelines because we've seen what happens when you don't. A cheap transformer is the most expensive thing you'll ever buy.
Real-World Case: The Malaysian Data Center Headache
Last year, we supplied a set of transformers for a data center in Malaysia. The ambient heat was brutal. Standard designs were thermal-tripping within hours. We had to go back to the drawing board and optimize the radiator layout to handle that specific tropical profile. That's the difference between a pad mounted transformer manufacturer that just ships boxes and one that actually understands engineering. We don't just sell you a green box; we sell you a power solution that actually stays on.
People Also Ask: Transformer Life Expectancy
How long will it last? If you buy a Ryan Electric unit and actually perform the basic oil tests once a year, you're looking at 30 years easy. If you ignore it, let the gaskets dry out, and push it to 110% load in the middle of summer? You'll be lucky to get ten. Treat it like a high-performance engine: keep the oil clean, keep it cool, and it'll outlast your mortgage.
Tired of vendor excuses? Our engineers are ready to talk specs, not just sales. Reach out for a technical consultation that actually makes sense.
